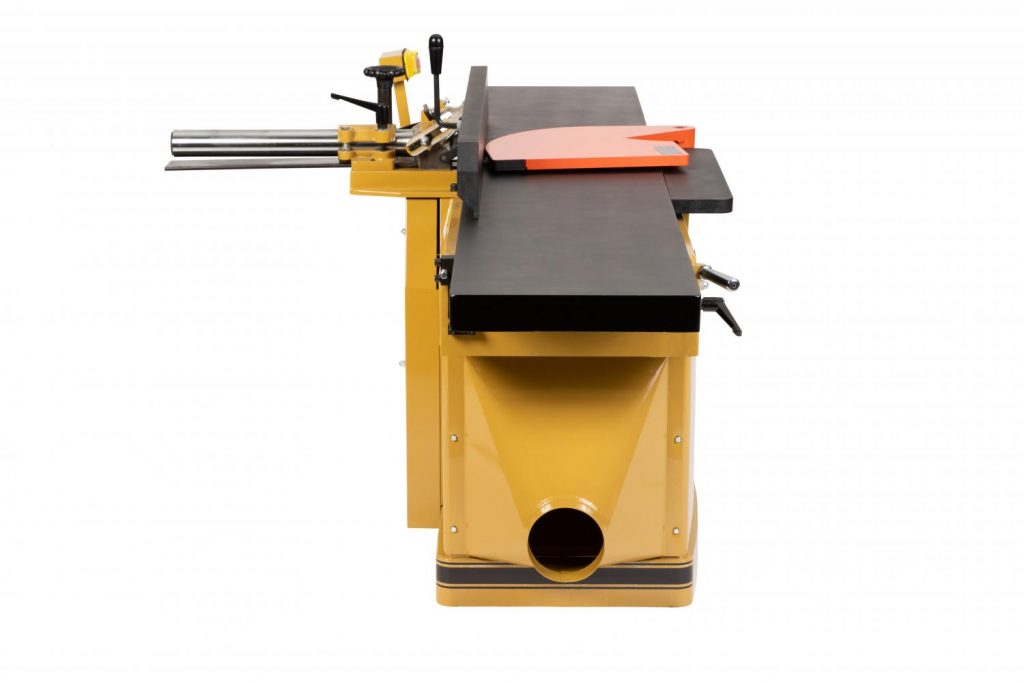

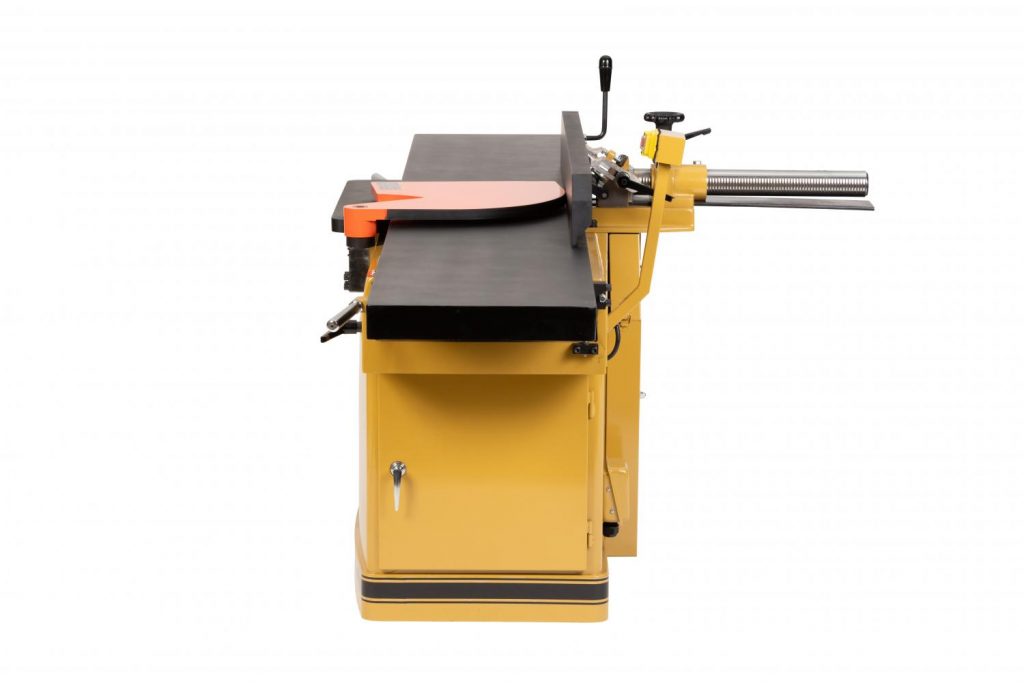

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.

This design also ensures that the tables remain perfectly parallel, even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7-1/2-HP motor delivers all the power you need for even the biggest jobs.

Model Number PJ1696T
Warranty 5 Year
Type of Cutterhead Helical Head
Cutterhead Diameter (In.) 4
Maximum Cutting Depth (In.) 1/8″
Cuts Per Minute 20,800
Cutterhead Speed (RPM) 5200.0000
Cutting Capacity (W x D) (In.) 16 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 6
Infeed Table Length (In.) 47-1/2
Number of Knives 58
Motor Power (HP) 7-1/2
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Phase 3
Max.Rabbeting Capacity (In.) 3/4″
Table Height from Floor (In.) 37-1/2
Gross Weight 1400.0
Net weight 1280.0
