  • Carbide inserts are indexed for quick changing.
    Massive cast iron construction throughout allows up to a 1/4” cut.

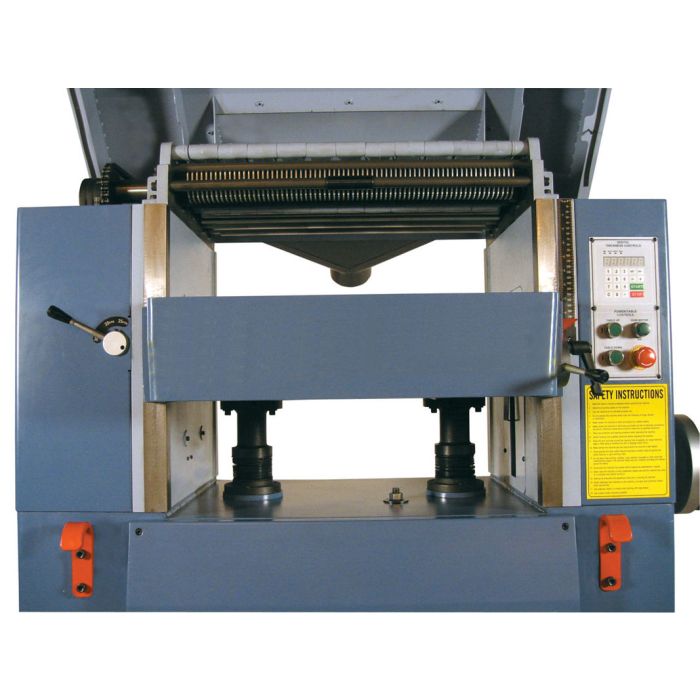

    Polished built-in table roller assists movement of rough stock.
    Segmented infeed roller and sectional chip breaker easily handle rough stock.
    Dual outfeed rollers assist with heavy stock.
    3-speed gear box provides the perfect feed rate.
    Magnetic controls with emergency off switch for safer operation.
    Control panel with digital readout allows precise thickness settings.

    More Information
    Model Number 4470
    CutterHead Oliver HCX Helical
    Ph 1Ph
    Stock Number 4470.101T
    Maximum Stock Width 25″
    Maximum Depth of Cut 1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25″
    Maximum Stock Thickness 9-1/4” (239mm)
    Minimum Stock Thickness 1/4” (6mm) Manual 9/32” Automatic (7mm)
    Minimum Stock Length 10″
    Dust Port Diameter 5″
    Minimum CFM Required 900cfm
    Infeed Roller Diameter 3″
    Steel Outfeed Roller Diameter 3″(x2)
    Feed Speeds 20, 25 and 30 FPM
    Bed Rollers 2, Adjustable
    Table Size 26” x 32”
    Cutterhead Diameter 3-3/8”
    Cutterhead Speed 4,800 RPM
    Number of Knives (helical) 125
    Footprint 47-1/2” L x 21” W
    Table Support 2-Column
    Motor 1Ph 10HP, 240V Only (49 Amps)
    Overall Dimensions 46”L x 23”W x 56”H
    Net Weight 1,732 lbs.
    Gross Weight 1,850 lbs

  • « Back to Catalogue

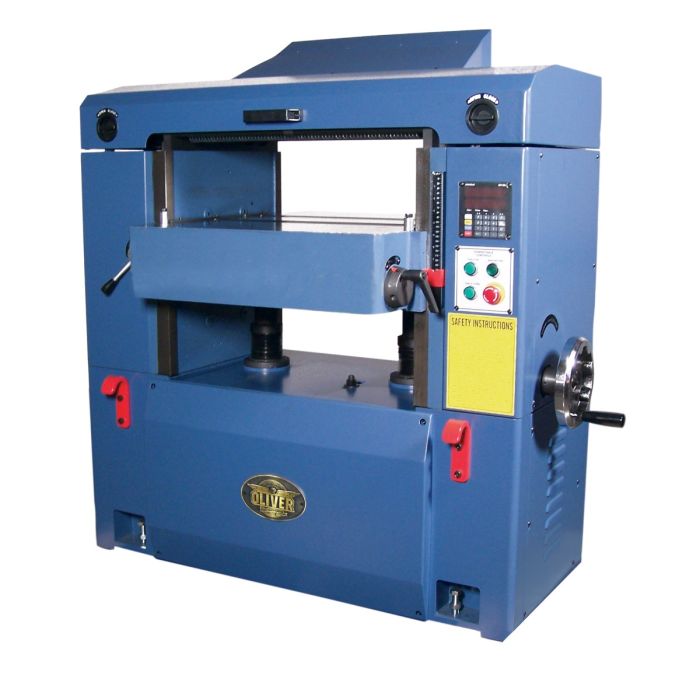

  • 25" Planer with Oliver HCX Cutterhead - 4470.101T Image
  • 25" Planer with Oliver HCX Cutterhead - 4470.101T

  • $16499.99
