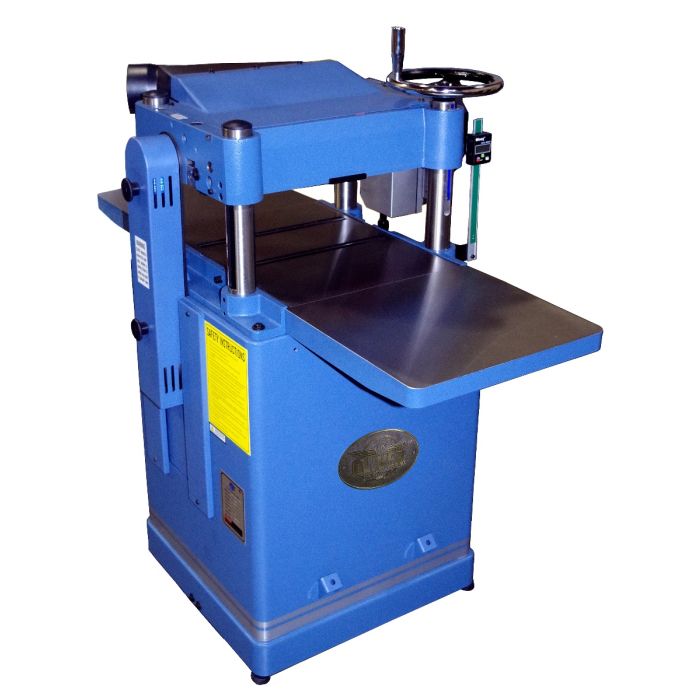

Unique design allows motor and cutter head to move in unison.
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.
Oliver HCX Helical cutterhead with premium carbide inserts.
4-sided cutting inserts are indexed and easy to replace.
Heavy cast iron construction including extension wings.
Table and extensions wings are precision ground for smooth stock feeding.
Table is fixed allowing easy use of auxiliary stock support.
Wixey digital read out allows precise thickness settings.
Large hand wheel and support struts allow easy height adjustment.
Four-post design ensures head alignment regardless of stock thickness.
Two-speed feed gearbox for better cuts.
Oil bath gear lubrication for years of performance.
4” port allows excellent dust management.
Built-in heavy-duty casters for mobility.
Magnetic switch for added protection and safety.
Model Number 10014
Stock No. (3HP, 1Ph) 10014.201
Stock Number 0
Maximum Stock Width 15″
Maximum Depth of Cut 1/8″
Maximum Stock Thickness 6″
Minimum Stock Thickness 3/16″
Minimum Stock Length 6″
Dust Port Diameter 4″
Feed Speeds 16/20 FPM
Bed Rollers 2, Adjustable
Table Size 15″ x 19-5/8″
Table Size w/Extension Wings 15″ x 47-5/8″
Table Height 30-1/8”
Cutterhead Diameter 3″
Cutterhead Speed 5,000 RPM
Number of Knives 52
Number of Knives (helical) 52
Table Support 4-Column
Motor 3HP, 220V Only (1Ph, 12 Amp)
Motor 1Ph 3HP, 220V Only
Overall Dimensions 28” x 47-1/2” x 52”
Net Weight 401 lbs.
Gross Weight 470 lbs.
