- Massive cast iron precision ground table provides a solid work surface.
- Table features pre-drilled and threaded holes for power feeder.
- Cast iron base provides a steady platform.
- Table features pre-drilled and threaded holes for optional power feeder.
- 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
- Three spindle speeds allow more choices to produce a better finish.
- Reversing spindle gives more options for each set-up.
- Innovative dovetail design accurately raises and lowers the spindle.
- Fence is independent and features micro adjustments for quick set-up.
- Top mounted control panel includes a digital readout for spindle height.
- Large hand wheel for quick spindle height adjustment.
- Miter gauge included.
- Magnetic controls with emergency off switch for safer operation.
- Powerful TEFC motor available in single phase.
Model Number 4705 Ph 1Ph Stock No. (5HP, 1Ph) 4705.001 Spindle Speeds 5,000, 7,000, 10,000 RPM Maximum Tool Diameter 7” Below Table, 8” Above Table Spindle Diameter: 1-1/4” and 3/4” Interchangeable Verticle Spindle Travel: 4″ Spindle Direction: Reversible Table Height 36-1/2” T-Slot: 3/4” x 3/8” Dust Port Diameter 4” Minimum CFM: 800 Footprint 28-1/2”L x 24-3/4”W Table Dimensions 39”L x 31-1/2”W Motor 1Ph 5HP, 220V only (18 Amp) Net Weight 660 lbs. Gross Weight 800 lbs. - « Back to Catalogue

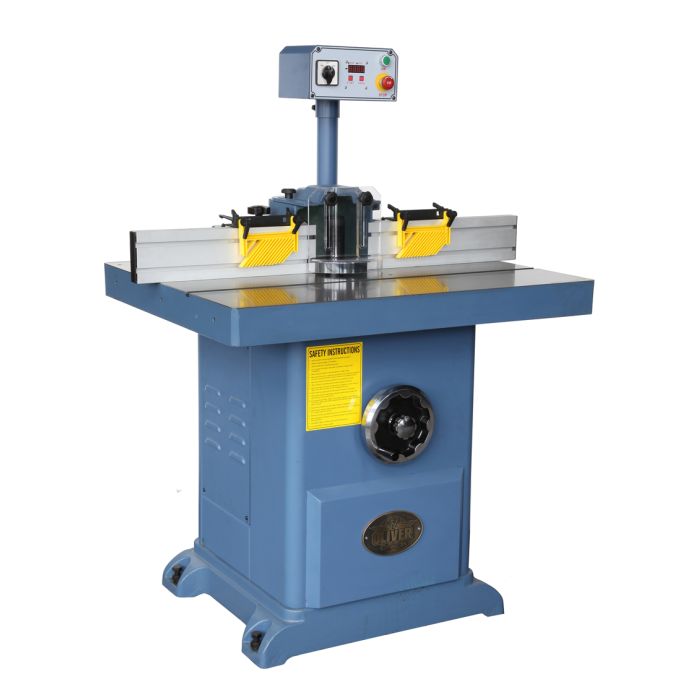

Oliver 4705.001 5HP 1PH Shaper
$4729.99
