    • Massive cast iron precision ground table provides a solid work surface.
    • Table features pre-drilled and threaded holes for power feeder.
    • Cast iron base provides a steady platform.
    • Table features pre-drilled and threaded holes for optional power feeder.
    • 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
    • Three spindle speeds allow more choices to produce a better finish.
    • Reversing spindle gives more options for each set-up.
    • Innovative dovetail design accurately raises and lowers the spindle.

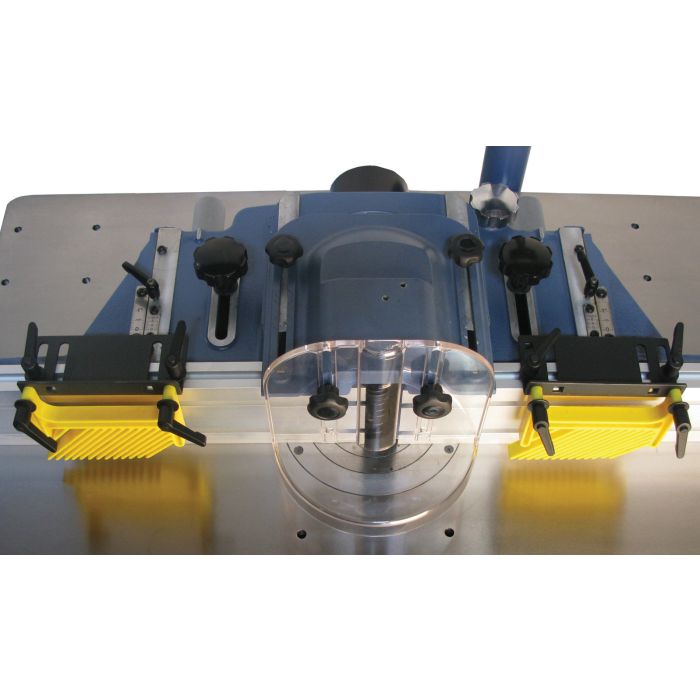

    • Fence is independent and features micro adjustments for quick set-up.

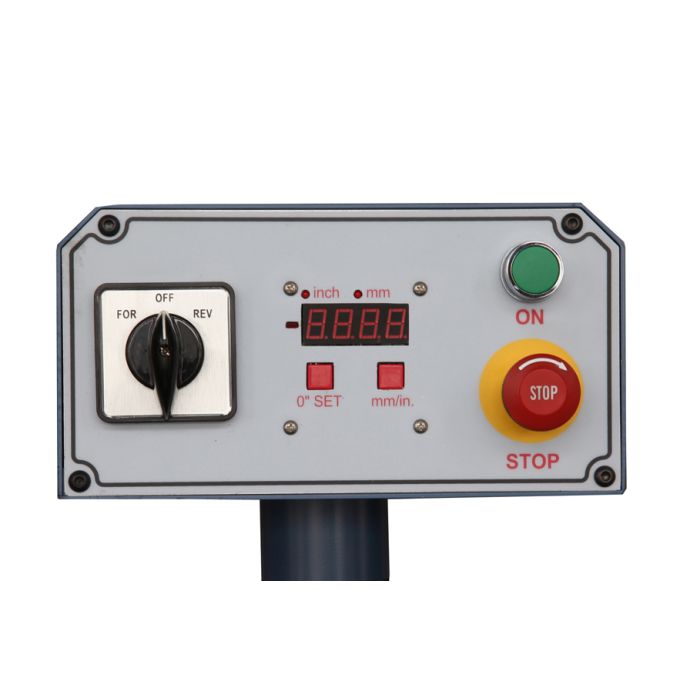

    • Top mounted control panel includes a digital readout for spindle height.
    • Large hand wheel for quick spindle height adjustment.
    • Miter gauge included.
    • Magnetic controls with emergency off switch for safer operation.
    • Powerful TEFC motor available in single phase.
    • More Information
      Model Number 4705
      Ph 3Ph
      Stock No. (7.5HP, 3Ph) 4705.002
      Spindle Speeds 5,000, 7,000, 10,000 RPM
      Maximum Tool Diameter 7” Below Table, 8” Above Table
      Spindle Diameter: 1-1/4” and 3/4” Interchangeable
      Verticle Spindle Travel: 4″
      Spindle Direction: Reversible
      Table Height 36-1/2”
      T-Slot: 3/4” x 3/8”
      Dust Port Diameter 4”
      Minimum CFM: 800
      Footprint 28-1/2”L x 24-3/4”W
      Table Dimensions 39”L x 31-1/2”W
      Motor 3Ph 7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp)
      Net Weight 660 lbs.
      Gross Weight 800 lbs.
  • « Back to Catalogue
  • Oliver 4705.002 7.5HP 3PH Shaper Image

  • Oliver 4705.002 7.5HP 3PH Shaper

  • $4729.99
