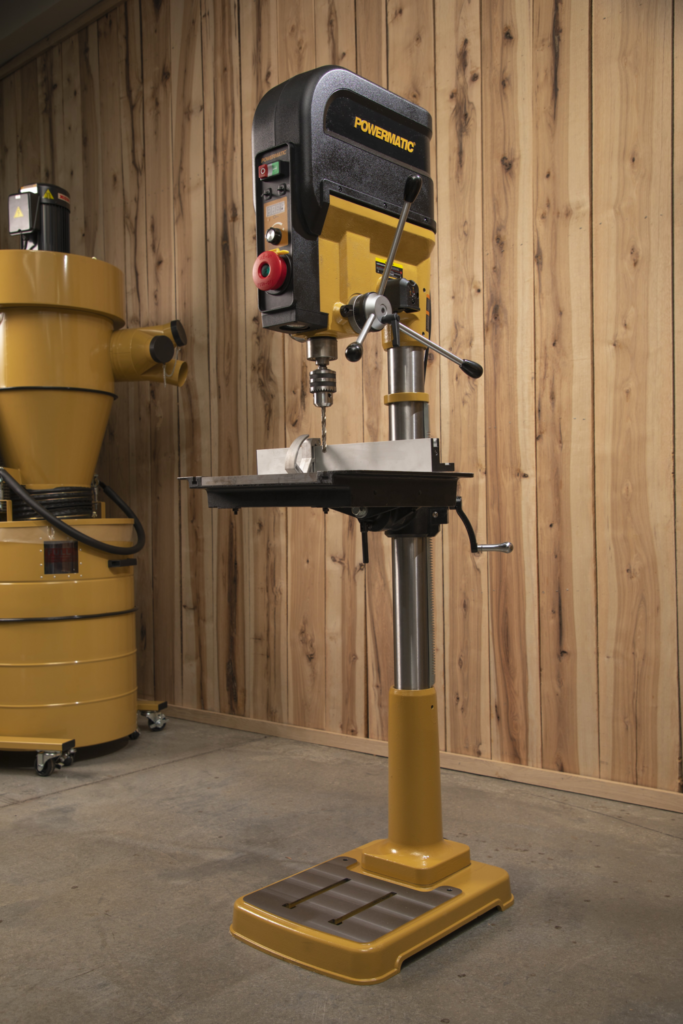

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press.

The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy.

Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.

Stock Number PM9-1792820
Base Dimensions (In.) 22.7 x 16.33 x 2.75
Base Size (In.) 22-3/4 x 16-3/8 x 2-3/4
Base Work Table (In.) 11.81 x 12.05
Chuck Distance to Base (In.) 41-1/4
Chuck Distance to Table (In.) 19-1/4
Chuck Size (In.) 5/8
Column Diameter (In.) 3-3/8
Fence Size (L x H) (In.) 19-3/4 x 2-5/8
Model Number PM2820
Motor Amps 8
Motor (HP) 1
Motor Phase Single
Motor Power (HP) 1
Motor Voltage (V.) 120
Number of Spindle Speeds 2 Variable
Overall Dimensions (L x W x H) (In.) 24.5 x 20.5 x 71.85
Prewired Voltage (V.) 115
