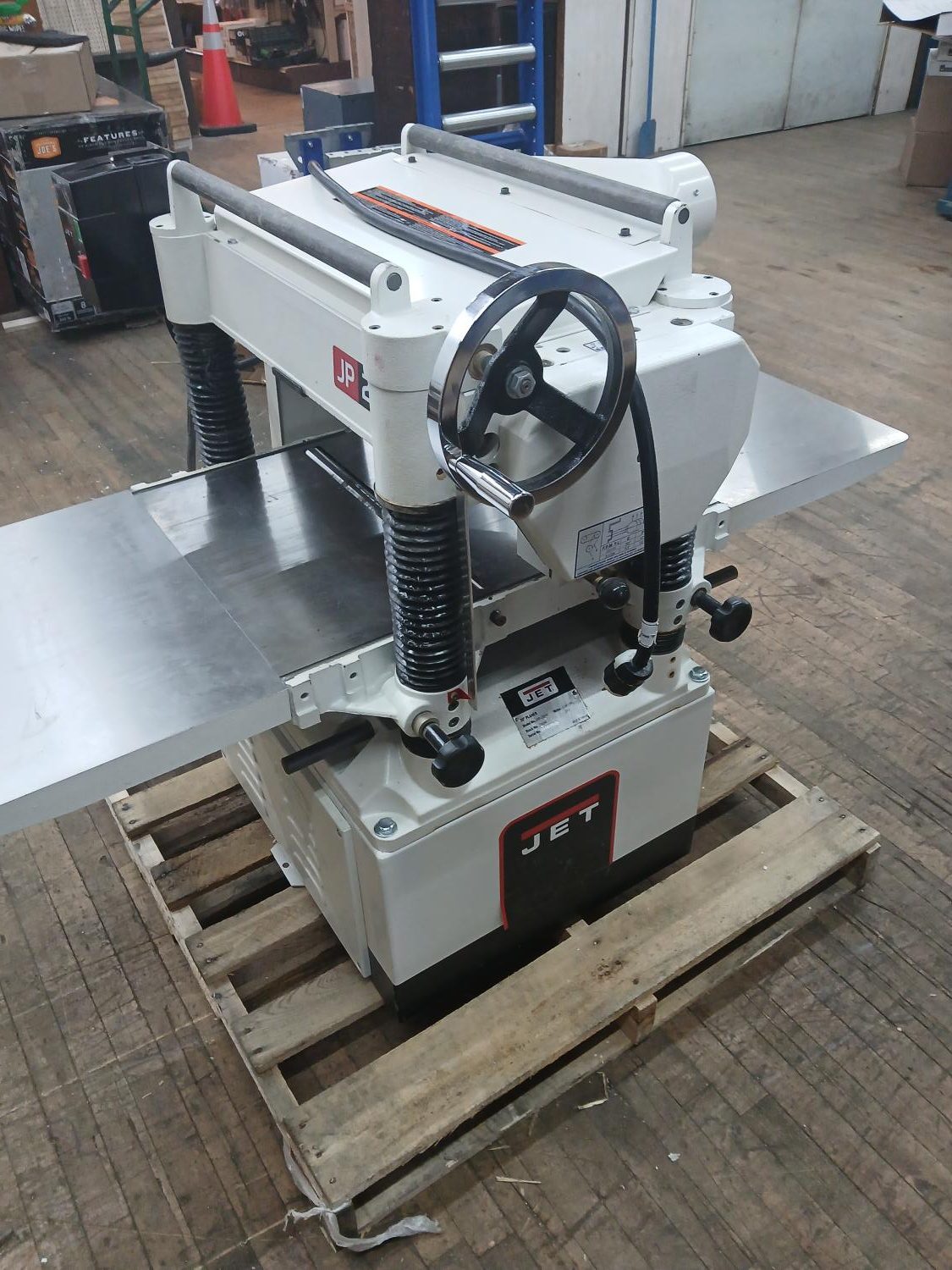

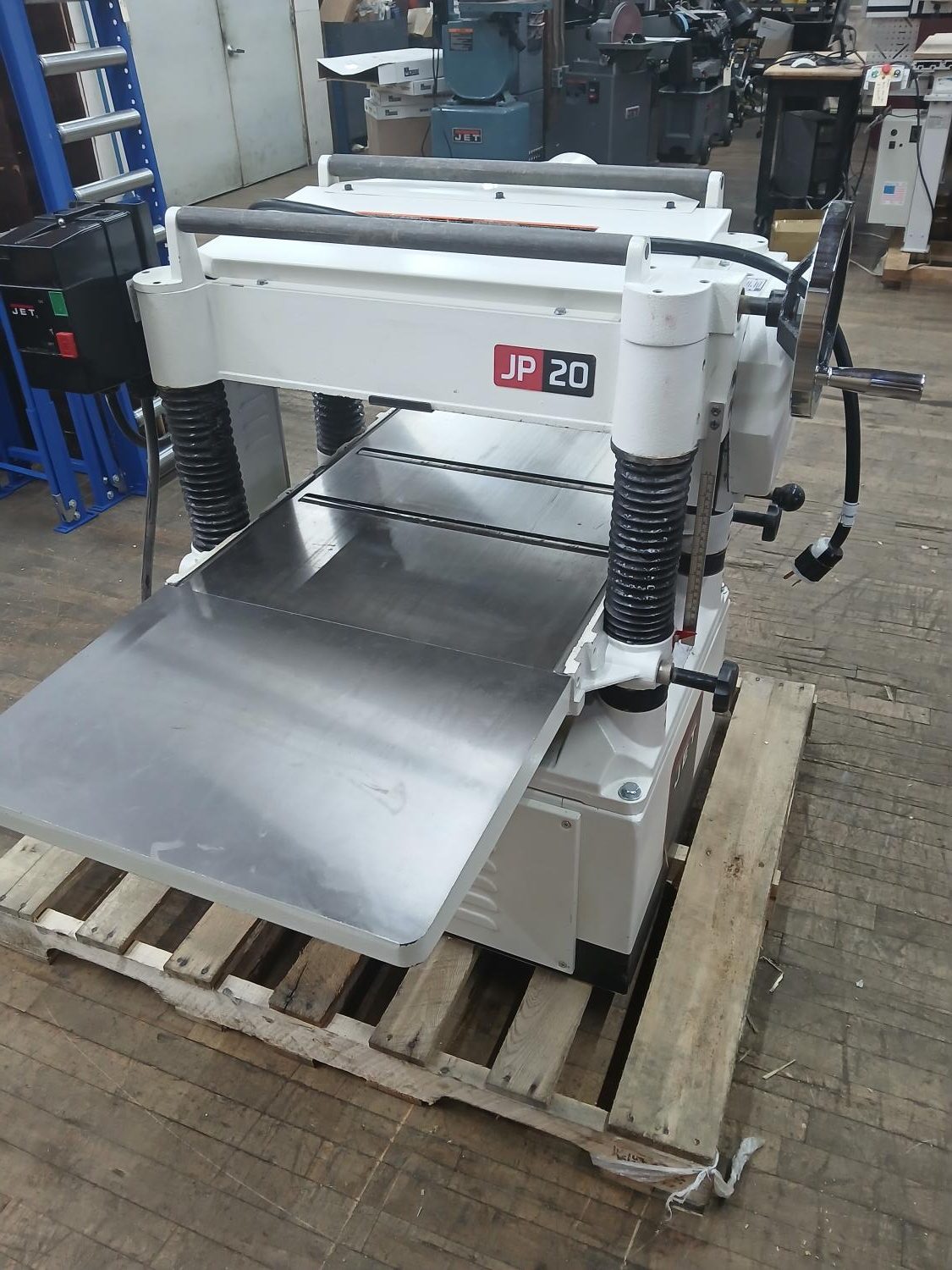

2022 Model Jet 20″ helical head planer in excellent condition

Features

• 1/16″ Increment height scale lets you make the most precise adjustments for fine cuts
• 5″ dust port provides efficient chip and dust collection
• Cast iron infeed and outfeed tables come with the machine
• Heavy-Duty cast iron and steel construction
• Heavy-duty cast iron and steel construction for added strength and durability
• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Large handwheel with positive gear drive allows for quick and accurately table adjustments
• Large, cast iron, precision ground table for precise workpiece support
• Magnetic controls provide long life and reliability
• One-piece welded steel base offers solid support and stability
• Positive gear drive moves table quickly and accurately
• Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs

Specifications

Knife Size (L x W x T) – 15 x 15 x 2.5

Style (Type) – Floorstanding Model

Maximum Full Width Depth of Cut (In.) – 3/32

Maximum Planing Width (In.) – 20

Table Size (L x W) (In.) – 25-3/4 x 20

Maximum Planing Thickness (In.) – 8

Cutterhead Diameter (In.) – 3-3/16

Cutterhead Speed (RPM) – 5000

Minimum Planing Length (In.) – 6-3/4

Number of Speeds – 2

Motor Power (HP) – 5

Dust Collection Minimum CFM Required (CFM) – 400

Motor Voltage (V.) – 230

Prewired Voltage (V.) – 230

Motor Amps – 27
