This variable-speed drill press runs smoothly even at full capacity—and will do so for years at your shop. Unlike pulley-driven drills, this 16″ drill press lets you run tooling at the proper speed to fit your application and extend tooling life.

• 2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site.

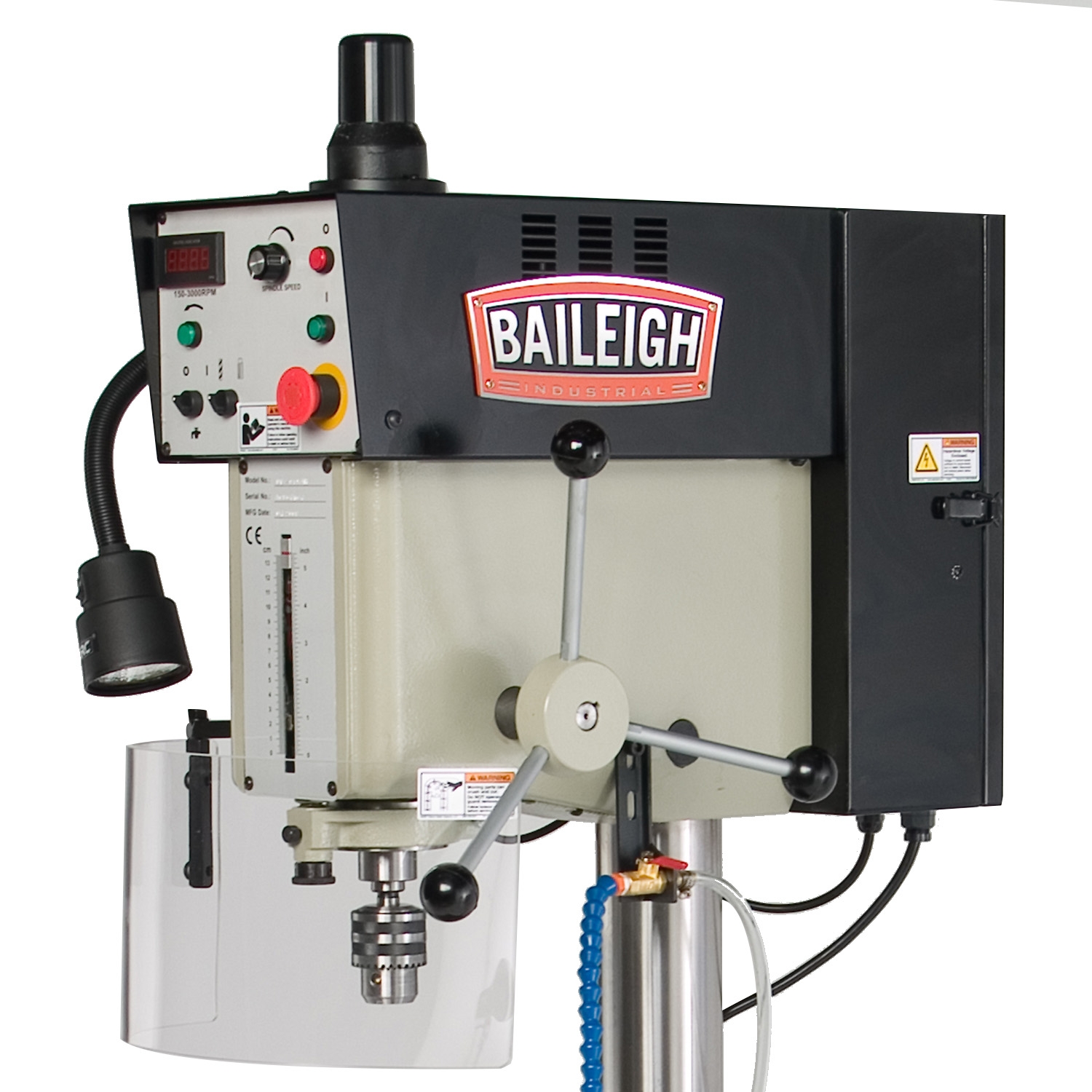

• Inverter-driven head drills a maximum capacity of 1” steel.
• You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application.
• Auto-reversing tap has a tapping capacity of 5/8” steel.
• Wide steel column eliminates flexing even when drilling at full capacity.
• Rigid cast iron base and table add strength to the drill’s structure.

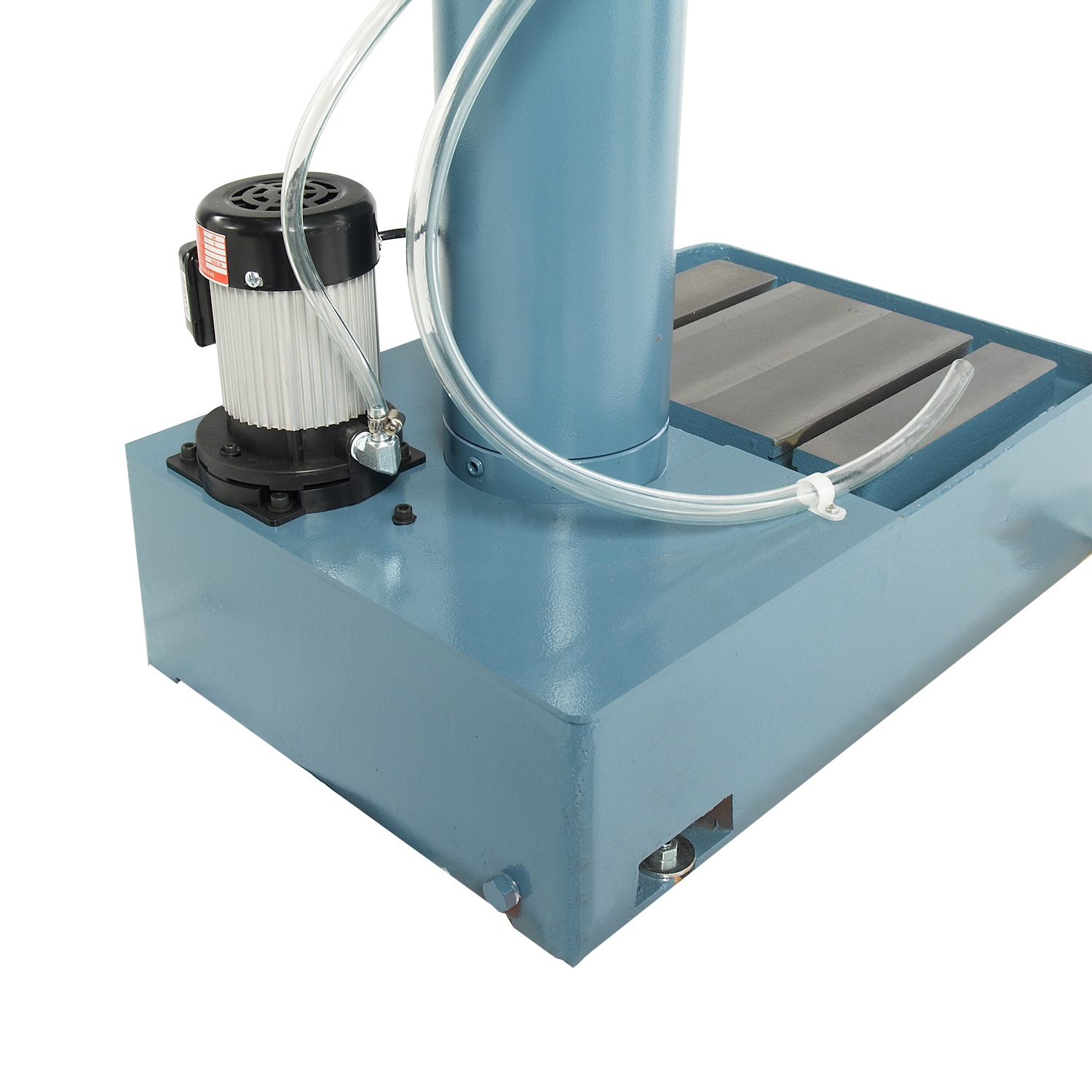

• Comes standard with a coolant system, a feature that some competing companies consider an upgrade.

• Item Number	DP-1000VS
  Table Size	18.1″ x 14.2″
  Quill Diameter	2.44″
  Spindle Nose to Table	23.8″
  Spindle Nose to Base	45.3″
  Spindle Speed	150 – 3000 rpm
  Spindle Taper	MT 3
  Table Slot	.625″
  Tapping Capacity Cast Iron	3/4″
  Tapping Capacity Steel	5/8″
  Main Motor	2 hp
  Drill Capacity Cast Iron	1.25″
  Drill Capacity Steel	1″
  Power	220V Single Phase
  Shipping Weight	600lbs
  Spindle Travel	5.3″
  Column Diameter	3.62″
  Base Dimensions L x W	27″ x 19″
  Shipping Dimensions (Inches)	60x44x83
